Home » Products » Flush Door » Flush Door

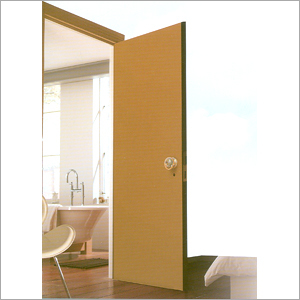

Flush Door

Flush Door
Flush Door
Product Code : 03
Product Description

Our organization is counted among one of the renowned names in the field of manufacturing, supplying and exporting high quality Flush Door in varied sizes. These doors are designed and developed by following latest market trends. Our entire range of doors is widely used for residential apartments, offices and other places. In addition to this, Flush Door we offer enhances the entire decor of the area and also provide security against theft.

Features:

  • Elegant look

  • Fine finish

  • Longer life

  • Easy installation

Other Information:

Flush Door

Intelligent flush doors are modern, elegant and ready to use that can be easily installed with minimum efforts to protect and beautify your dream home. They are made out of high quality wood to make them exceptionally durable and dimensionally stable with excellent tooling and finishing properties. Obviously, the doors are made with chemically treated seasoned hardwood battens and frames.

The cross bands veneers are uniformly dried to the requisite moisture content. They are then bonded with special quality Phenol formaldehyde synthetic resin as per the guidelines of IS:2202. Intelligent Flush Doors are treated for total termite and borer protection. The flush doors are manufactured under strict quality control conditions that exceed the ISI specifications. The doors can be manufactured according to customized sizes too.

Sizes thickness : Standard sizes available. you can choose from the door thicknesses of 30,32 and 35mm.

Test

ISI Requirement

Observed Value

Dimension

length, Width - + 5 mm Thickness - + 1mm

Within limits

Squareness

Deviation not more than 1 mm on a length of 500mm

Deviation below 1 mm

General Flatness

Twist, cupping, warping not to exceed 6 mm


Local Planeness

Depth of deviation at any point to be less than 0.5mm

Within limits

Impact Indentation Test

Depth of indentation not to exceed 0.2mm

Within limits

Edge Loading Test

Deflection of edge withmax. To be less than 5 mm

Within limits

Shock Resistance Test

No visible defect after test

No visible defects

Buckling Test

Initial deflection - < 50 mm,

residual deflection - < 5 mm,

Within limits

Slamming Test

No visible defect after test

No visible damage

Misuse Test

No deformation after test

No deformation

Varying humidity Test

No visible warping, twisting or de-lamination

No such defects observed

End Immersion Test

No de-lemination at the end

No de-lemination

Knife Test

Minimum Pass Standard

Excellent

Glue Adhesion Test

No de-lamination

No de-lamination

Screw Withdraw Test

Load to withdraw screw to be more than 1000 N

Load - > 1000N
